Trio Plus

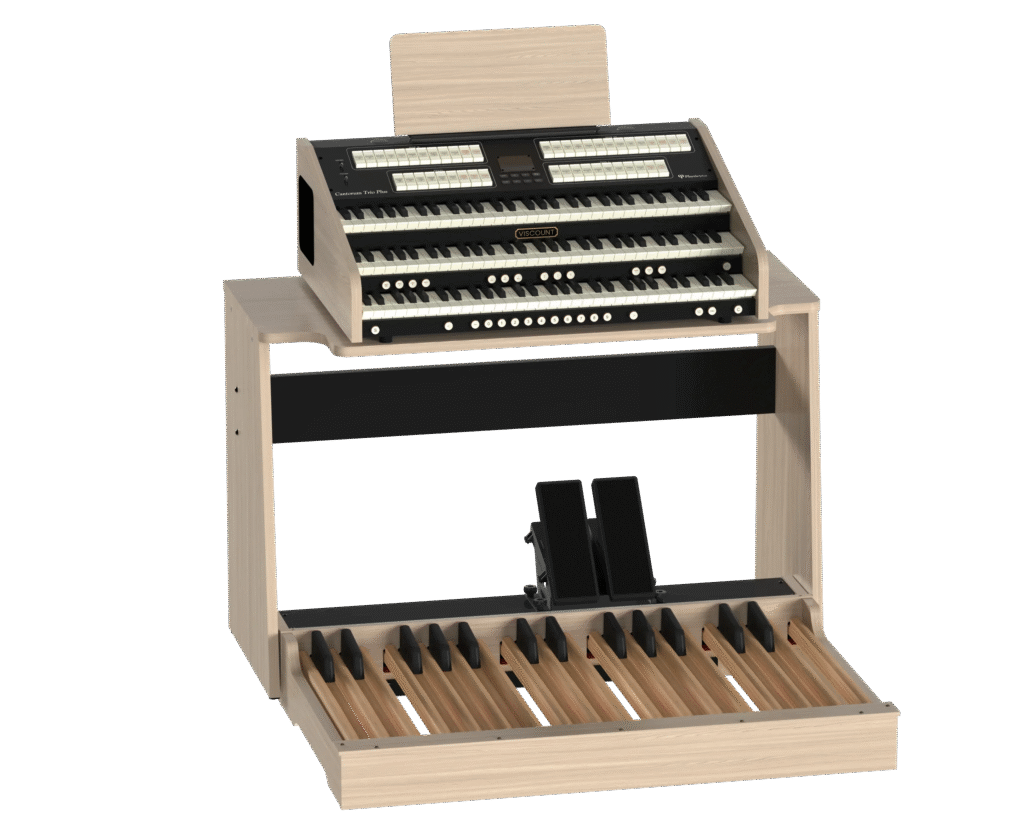

Cantorum Trio Plus
A really versatile and portable 3 manual instrument with built in speaker system offering 46 classic organ voices.
Physis+
A three manual version of the Cantorum Duo Plus. The Cantorum Trio Plus gives a stop list of 46 organ voices in a portable format.
The Trio plus is a modular instrument which can be used on its own as a portable keyboard only, or by adding various accessories such as wide stand, bench, 30-note radiating/concave or straight pedal board with integrated expression shoes. Ideal if space is an issue or if you need an instrument to move between venues.
Cantorum Trio plus
Features
- 3 x 61 note tracker touch keyboards, velocity sensitive for MIDI & orchestral voices
- 46 tilt-tab speaking stops and 4 orchestral voice pistons
- 5 alternative organ voices on each tab
- Baroque, Romantic, and Symphonic pipe sets, + user sets
- 19 alternative temperaments, + 4 user programmes
Playing Aids
- 10 general pistons
- 99 capture memories
- Previous/next memory pistons
- -/+ Memory bank pistons
- Transposes -3/+3 semitones
- Fully adjustable Tremulants (speed and depth)
- Tutti piston
- Auto Pedal piston
- Great/Pedal Enclosed piston
- Built-in recording with internal or USB storage
| Pedal | |
| Principalbass | 16 |
| Subbass | 16 |
| Octavebass | 18 |
| Gedacktbass | 8 |
| Choralbass | 4 |
| Mixture | IV |
| Contra Posaune | 32 |
| Posaune | 16 |
| Trompete | 8 |
| Great to Pedal | |
| Swell to Pedal | |
| Choir to Pedal | |
| Orch P |
| Swell (Man III) |
|
| Geigen Principal | 8 |
| Gedackt | 8 |
| Gamba | 8 |
| Vox Celeste | 8 |
| Principal | 4 |
| Holhflöte | 4 |
| Nazard | 2⅔ |
| Waldflöte | 2 |
| Terz | 1⅗ |
| Plein Jeu | IV |
| Fagott | 16 |
| Trompette Harmonique | 8 |
| Oboe | 8 |
| Clarion | 4 |
| Tremulant | |
| Orch III |
| Choir (Man I) |
|
| Bourdon | 8 |
| Quintadena | 8 |
| Principal | 4 |
| Blockflöte | 4 |
| Doublette | 2 |
| Larigot | 1⅓ |
| Sifflöte | 1 |
| Sesquialtera | II |
| Scharff | III |
| Krummhorn | 8 |
| Vox Humana | 8 |
| Tremulant | |
| Swell to Choir | |
| Orch I |
| Great (Man II) |
|
| Principal | 16 |
| Principal | 8 |
| Rohrflöte | 8 |
| Viola | 8 |
| Octave | 4 |
| Spitzflöte | 4 |
| Quinte | 2⅔ |
| Superoctave | 2 |
| Mixtur | V |
| Kornet | III |
| Contra Trompete | 16 |
| Trompete | 8 |
| Tremulant | |
| Swell to Great | |
| Choir to Great | |
| Orch II |
- Trio: 90cm (W) x 31.5cm (H) x 62cm (D)
- Weight 32 KG
- Trio Stand: 123cm (W) x 80cm (H) x 60cm (D)
- Trio Bench: 127cm (W) x 65cm (H) x 32cm (D)
- When ‘assembled’ you should expect the rear edge of a radiating concave pedal board to 113 cm into the room. This depth reduces by 14 cm with a flat or flat concave pedal board.
- 2 channels, 4 speakers 110w total (2 x 55 watts)
- External Audio – 4 x line out, adjustable output vol control per channel, 5 band eq, Voices output routing (per division)
- Headphone socket
